TS590s & Win-Test

Details
Last Updated: 21 January 2023
Hits: 4023

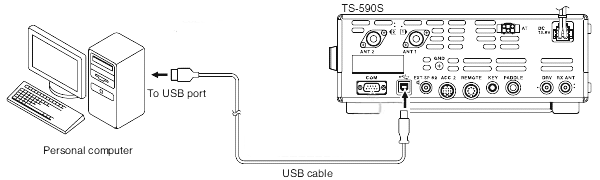

ts590 proc img01 Checklist configuration of the TS590s with a computer and Win-Test v 4.40.0 or Logger32 software.

Configuration TS590

icons8 error 16 the TS590 has 2 sets of configurations. You switch from one to another by pressing the A/B key, once you have entered the menu.
Be careful to configure the one used correctly. So as not to be mistaken, I put a configuration with the screen in green and another with the orange screen. :-)

Menu 61 and 62: baud rate of serial links via the COM and USB port. (57600)
Menu 63: choice of audio link between USB or ACC2
Menu 64-67: USB IN/OUT and ACC2 audio levels
Menu 68: Audio mixing with TS590 internal signals

PC configuration

Once the virtual COM driver is installed, the PC should detect an additional COM port and audio interface.
Note their names in Device Manager.

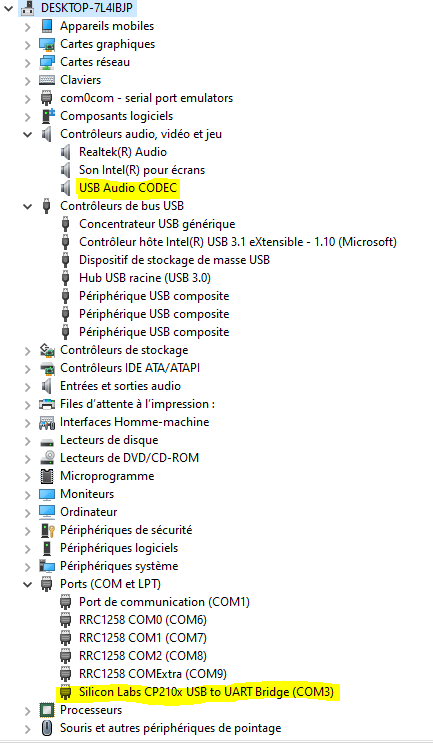

TS590 PERIPHERIQUES PC

Wintest configuration

Reminder: several hardware configurations can be defined and saved for Win-Test.
Just copy and rename the wt.ini file which is in C:\ProgramData\Win-Test\cfg. For example wt-TS590s.ini, and create a shortcut by launching Win-Test as follows:
wt.exe -i wt-TS590s

The hardware configuration specific to your setup will then be loaded. Then simply load the desired contest .wt4 file.

Configuring the TS590s
TS590s menu 63 on USB
Adapt audio levels with menus 64 and 65
To also record your own signals in CW, you must set parameter 68 to ON.

Win-Test Configuration

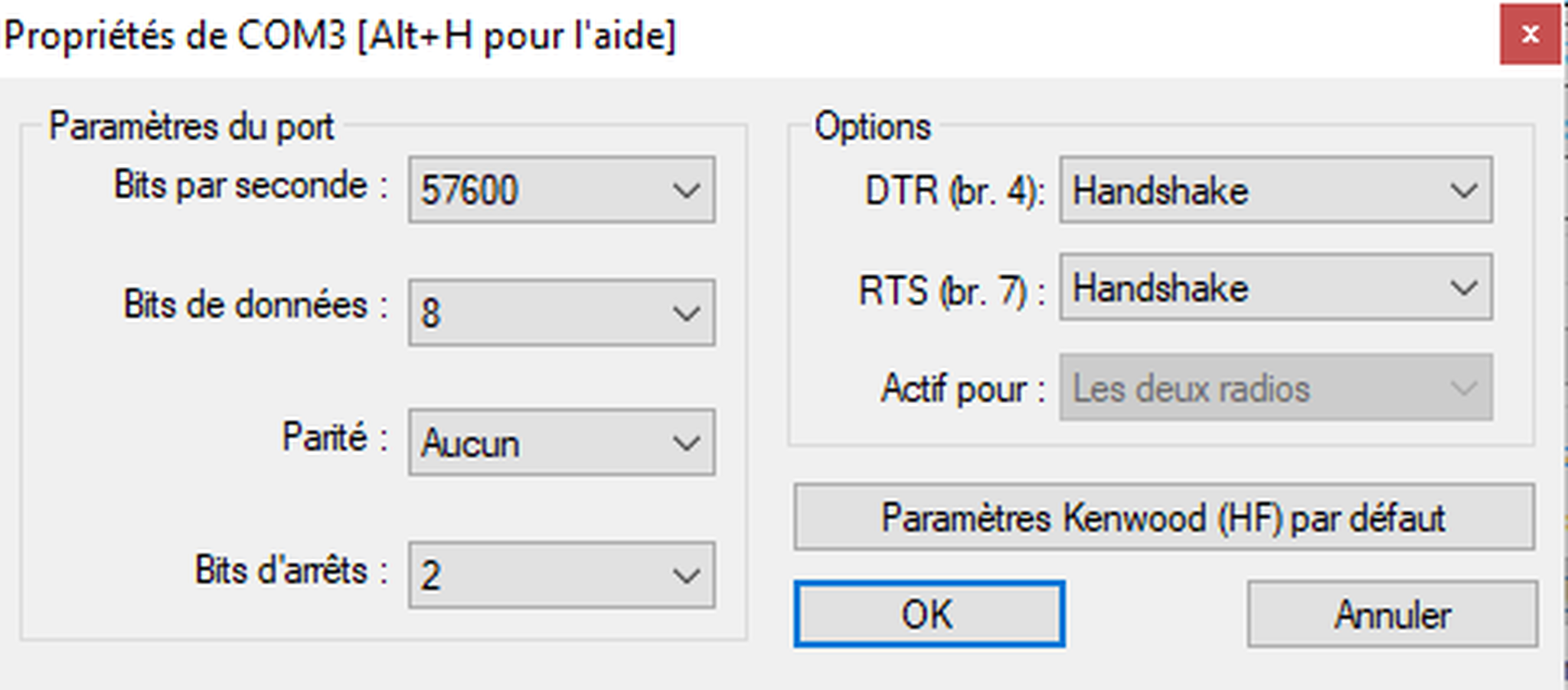

TS590 WINTEST COM

MP3 Configuration
You must first install the LAME CODEC. Refer to the Win-Test documentation for this.
Configure by "Options/MP3 Configuration" the CODEC and the sound card.

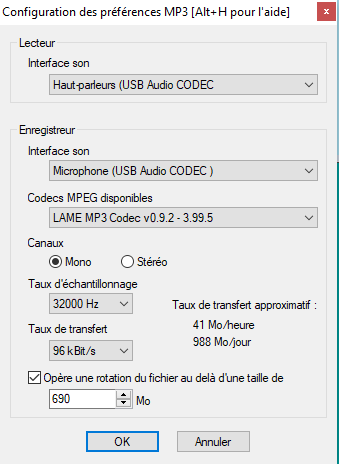

TS590 WINTEST AUDIO

CW Winkeyer Interface

I use a CW interface based on an assembly built around the K3NG manipulator and an Arduino Nano connected to a USB port of the PC. The serial circuit requires the driver for CH340.
Note the port used in the device manager and configure the appropriate port using "Options/Interface configurator".

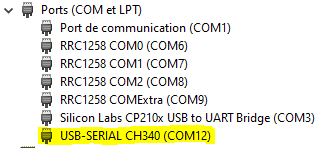

TS590 WINKEY COM PC

Configure Winkey via "Options/Winkey Configuration"

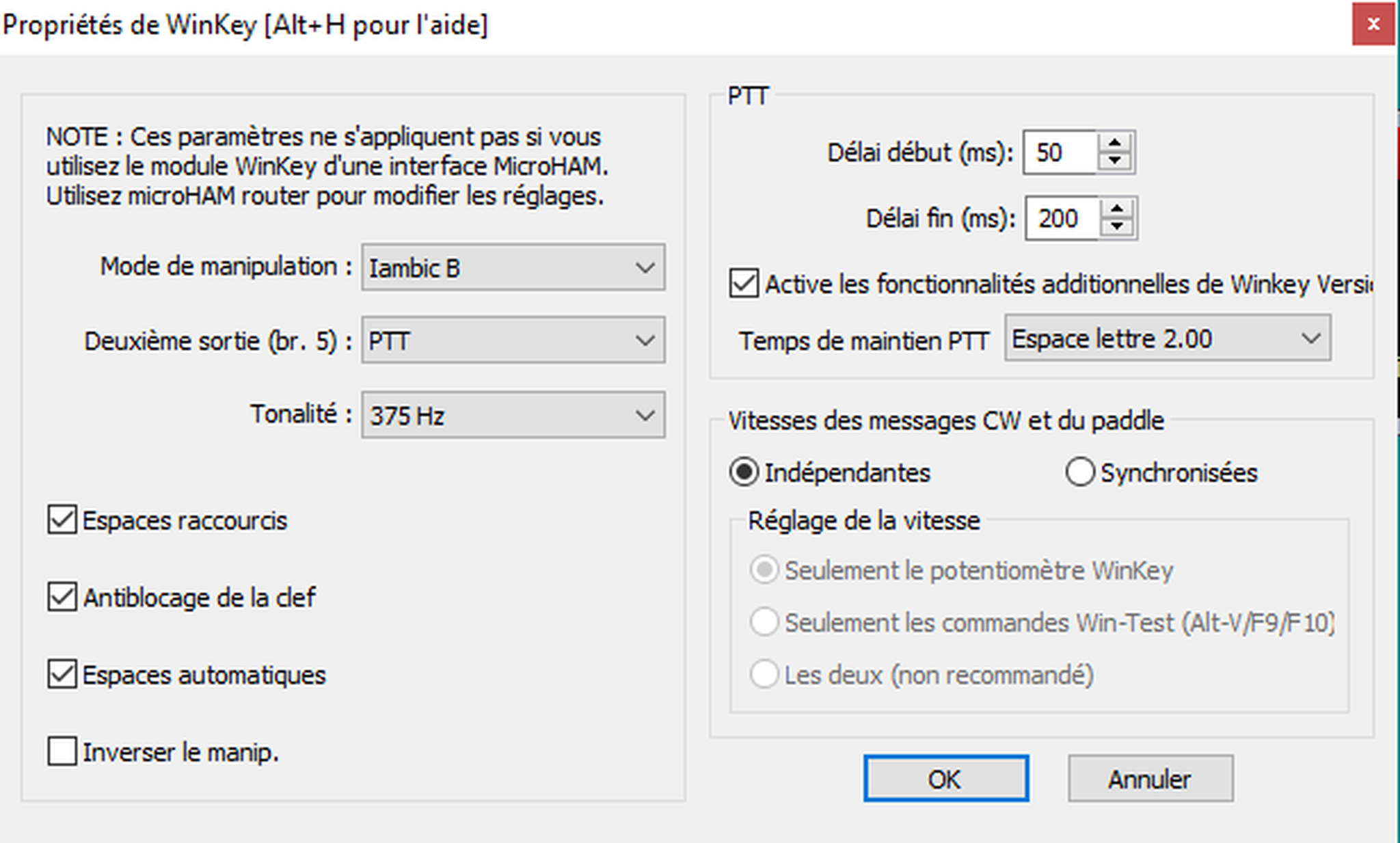

TS590 WINKEY

Read more …

Wintest + skimmer with Perseus SDR

Details
Last Updated: 04 February 2023
Hits: 18651

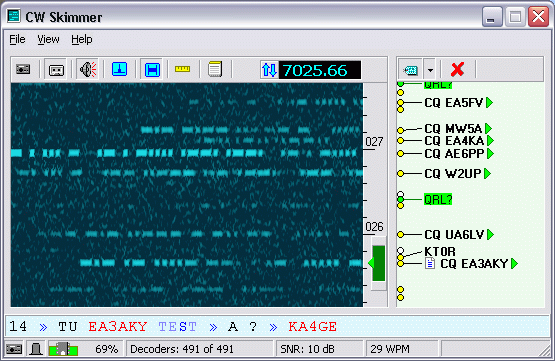

Cw3kHz mini

How to use Wintest and CW skimmer together ?
This procedure describes how to interface WinTest contest logging software, CW Skimmer in link with a Perseus SDR receiver, and a transceiver in a local configuration. "Local" means everything is hosted and connected to a single computer.

Configuration used :

  • Kenwood radio (TS590 or TS850) via CAT (Computer Assisted Transceiver)
  • Perseus SDR receiver
  • CW Skimmer v 2.1 for CW decoding
  • Win-Test v 4.38.1 for logging

Read more …
