march 24 2019
|
Punta d'Isa |
 |
Short walk to this summit but very steep, +420 m for 1,5 km...

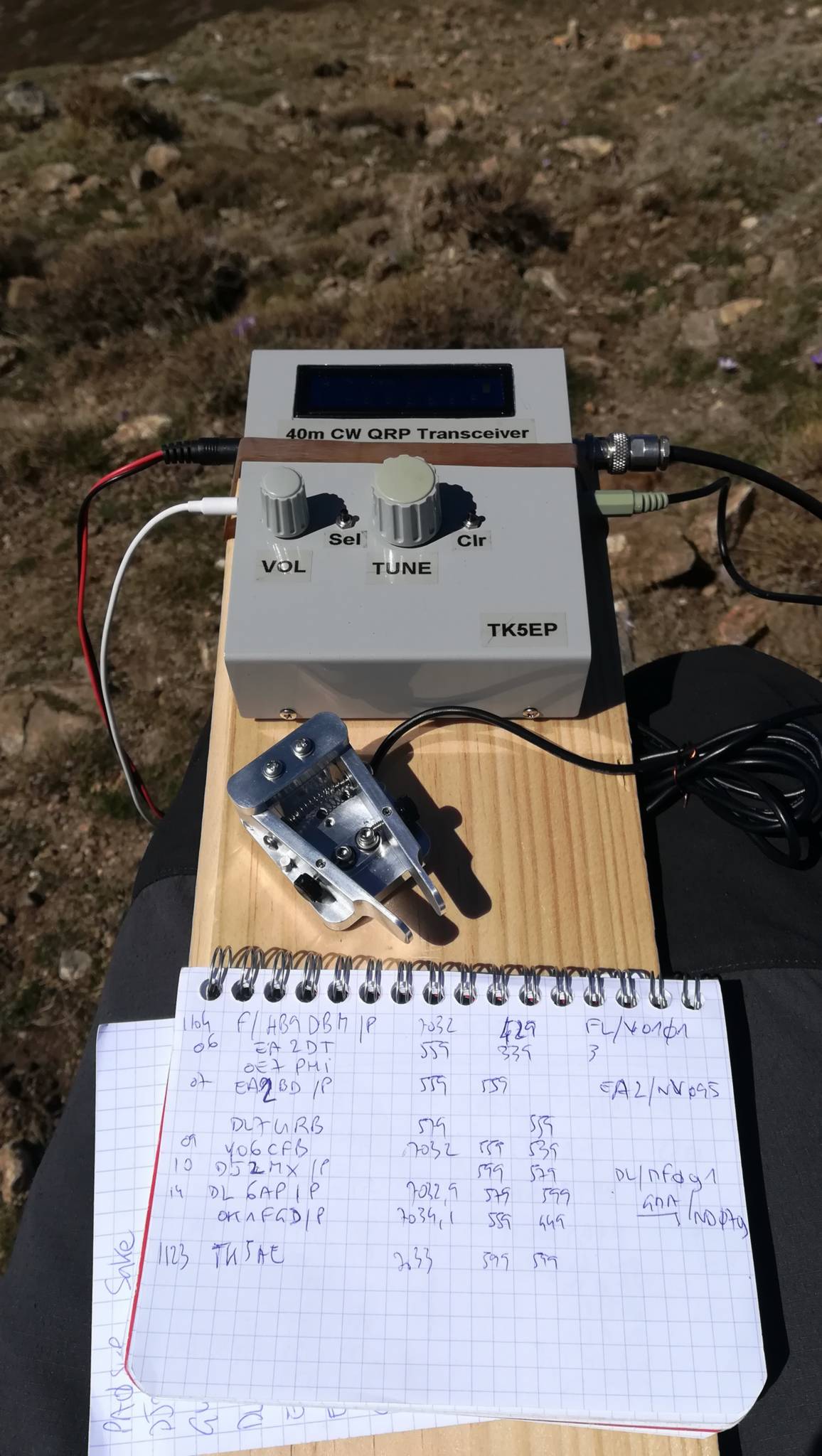

33 QSOs from which 7 S2S, all on 40 m CW ! CW rocks !!
A log sheet was blown away by the wind and stayed in the air for about 5 minutes, went very high above me and had the good idea to fall down only a few meters away...

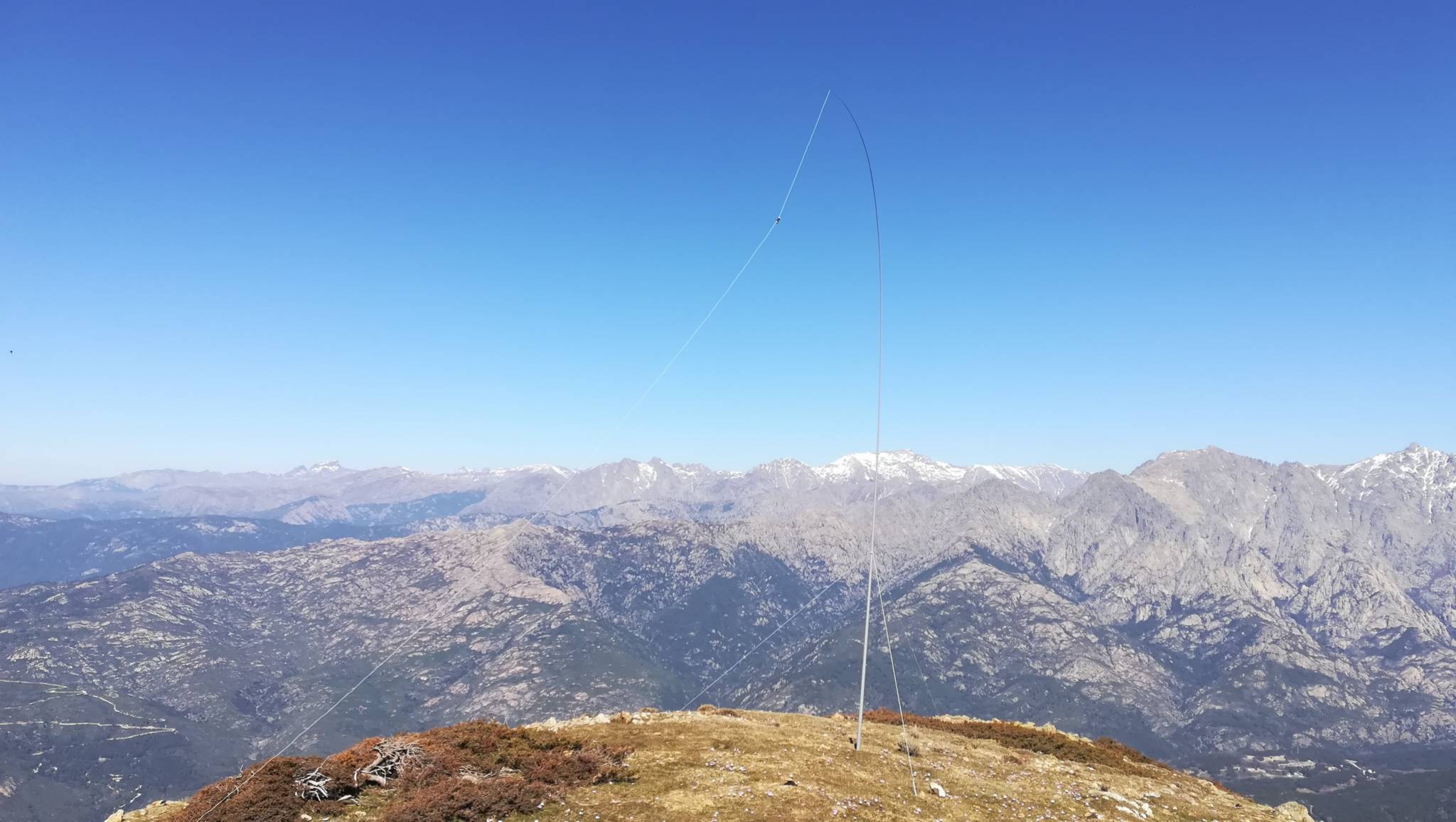

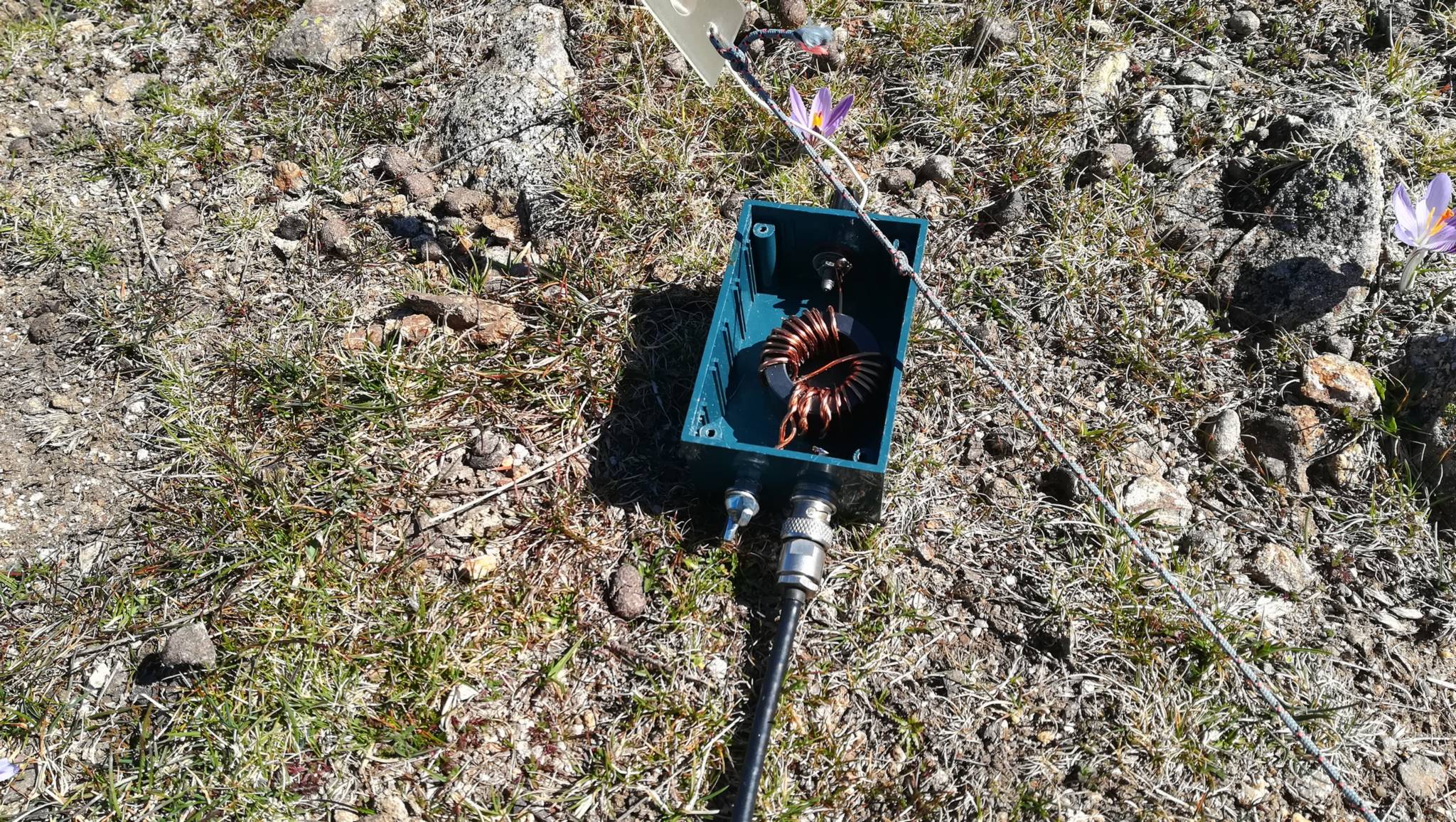

The new 49:1 transformer for the EFHW (End Fed Half Wave) antenna seems to work just as expected. I used a much larger wire in order to reduce losses and have a better mechanical rigidity.

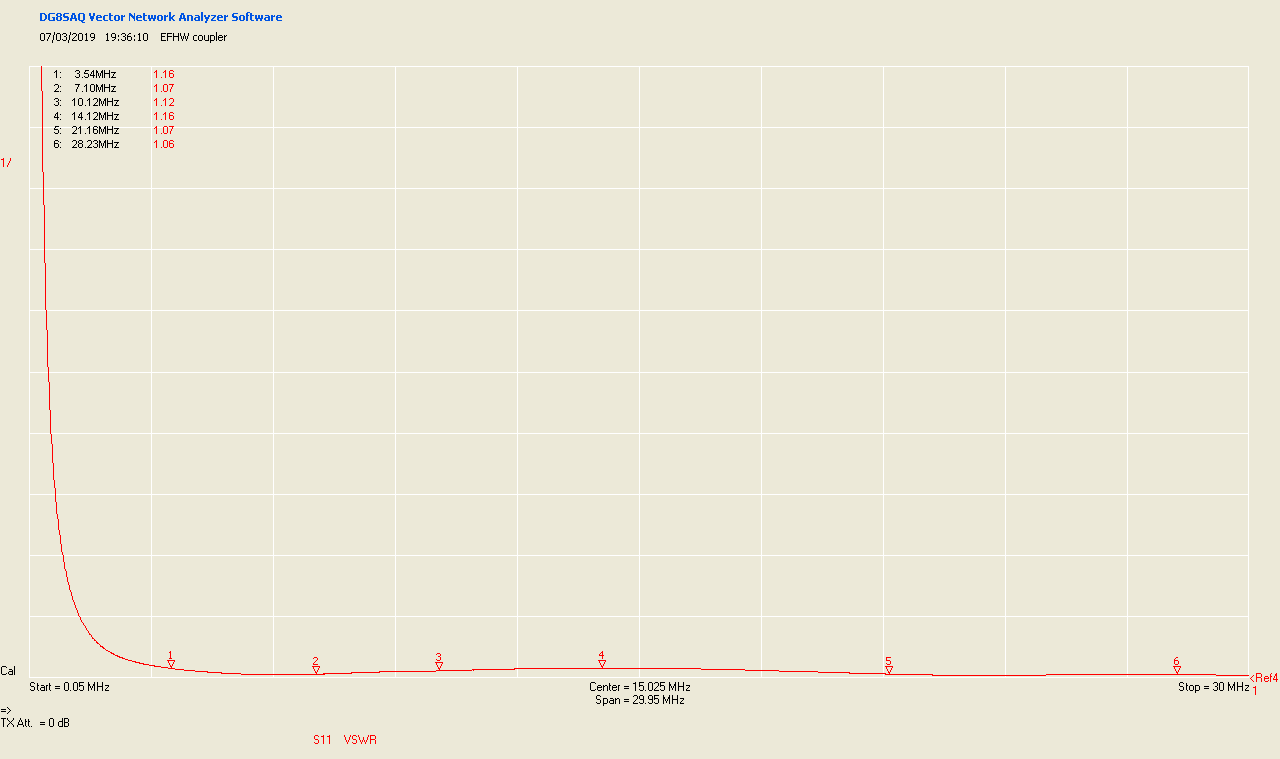

I tested it with my VNWA and results are very good. The transformer can be used down to 80m, but is optimized from 40 to 10 m.
I had a sked on VHF with TK5AE, but i didn't hear anything from him, nor did i hear any other signal ! Something must be wrong...
Back home, i tested the transceiver with my test bench and it performed very well.. The antenna did work only when i was bending the Rubber Ducky. I made a surgical intervention and found out that the feeding capacitor was not soldered anymore to the center pin.
Some solder and glue fixed that. I hope it will survive the next climbings...
  |
  |
 |
